Model

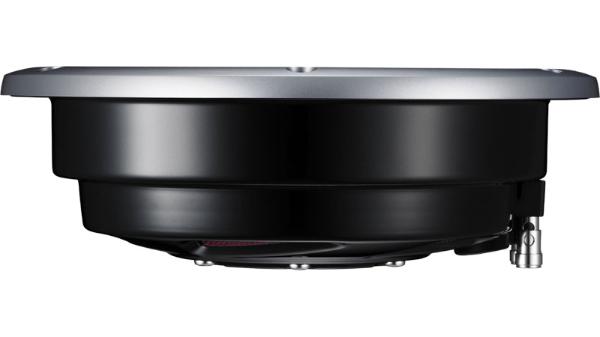

Pioneer TS-SW251
Rating
DIAM
10"
FS(Hz)
41.3
VAS(l)
9.8
QTS
1.09
PWR(W)
800
SPL(dB)
79.6
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
41.3
Vas(l)
9.8
Qts
1.09
Qms
9.9
Qes
1.15
Bl(Tm)
11.8
Mms(gr)
207
Cms(mm/N)
0.072
Rms(kg/s)
5.43
Le(mH)
2.4
Re(Ohm)
3
Sd(sq.mm)
30906
Vd(l)
0.204
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.06
Sensitivity(dB) 1-W
79.6
Sensitivity(dB) 2.8-V
83.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
238
Mounting Depth (mm)
78
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
