Model

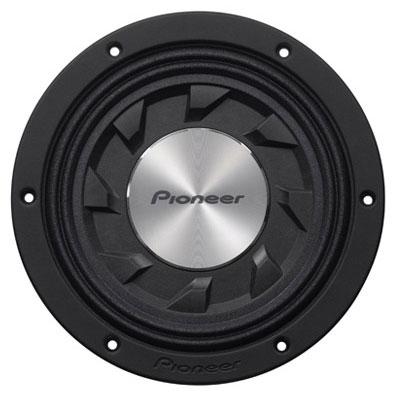

Pioneer TS-SW2541D
Rating
DIAM
10"
FS(Hz)
43.5
VAS(l)
8.3
QTS
0.95
PWR(W)
1000
SPL(dB)
80
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
43.5
Vas(l)
8.3
Qts
0.95
Qms
11.3
Qes
1.04
Bl(Tm)
13.7
Mms(gr)
197
Cms(mm/N)
0.068
Rms(kg/s)
4.73
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
29250
Vd(l)
0.175
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.06
Sensitivity(dB) 1-W
80
Sensitivity(dB) 2.8-V
83.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
76
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
