Model

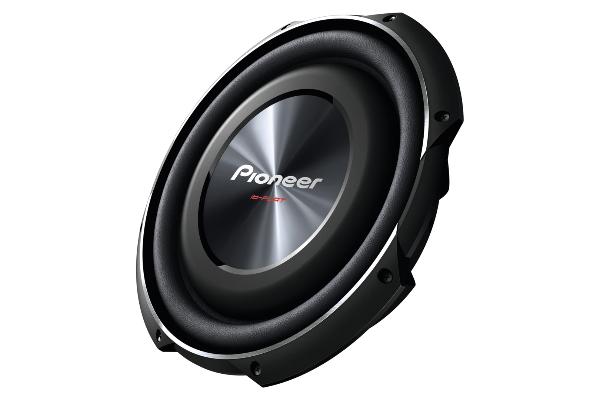

Pioneer TS-SW3002S4
Rating
DIAM
12"
FS(Hz)
35
VAS(l)
35.4
QTS
0.61
PWR(W)
1500
SPL(dB)
93
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
35.4
Qts
0.61
Qms
13.01
Qes
0.64
Bl(Tm)
17
Mms(gr)
243
Cms(mm/N)
0.085
Rms(kg/s)
4.29
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
57800
Vd(l)
0.508
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
93
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.1
Total Diameter (mm)
0
Cutout Diameter (mm)
298
Mounting Depth (mm)
86
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
