Model

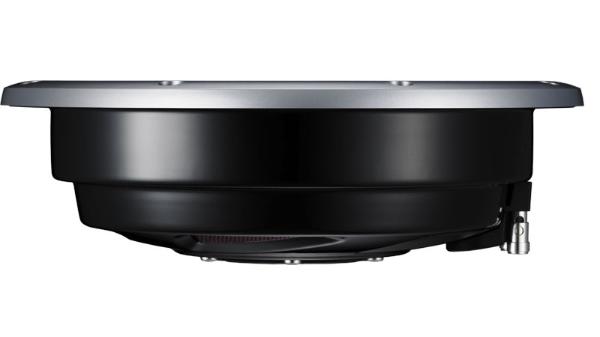

Pioneer TS-SW301
Rating
DIAM
12"
FS(Hz)
34.9
VAS(l)
19.9
QTS
1.01
PWR(W)
1000
SPL(dB)
80.5
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
34.9
Vas(l)
19.9
Qts
1.012
Qms
9
Qes
1.14
Bl(Tm)
13.1
Mms(gr)
281
Cms(mm/N)
0.074
Rms(kg/s)
6.82
Le(mH)
2.4
Re(Ohm)
3.2
Sd(sq.mm)
43512
Vd(l)
0.47
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.07
Sensitivity(dB) 1-W
80.5
Sensitivity(dB) 2.8-V
84.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
