Model

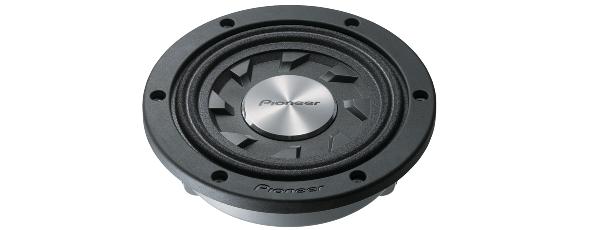

Pioneer TS-SW841D
Rating
DIAM
8"
FS(Hz)
67.5
VAS(l)
1.9
QTS
1.64
PWR(W)
500
SPL(dB)
76.7
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
67.5
Vas(l)
1.9
Qts
1.64
Qms
11.16
Qes
1.92
Bl(Tm)
9.3
Mms(gr)
107
Cms(mm/N)
0.052
Rms(kg/s)
4.054
Le(mH)
0.996
Re(Ohm)
3.3
Sd(sq.mm)
20600
Vd(l)
0.072
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
500
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.03
Sensitivity(dB) 1-W
76.7
Sensitivity(dB) 2.8-V
80.5
Mounting Information
Speaker Displacement (l)
1
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
