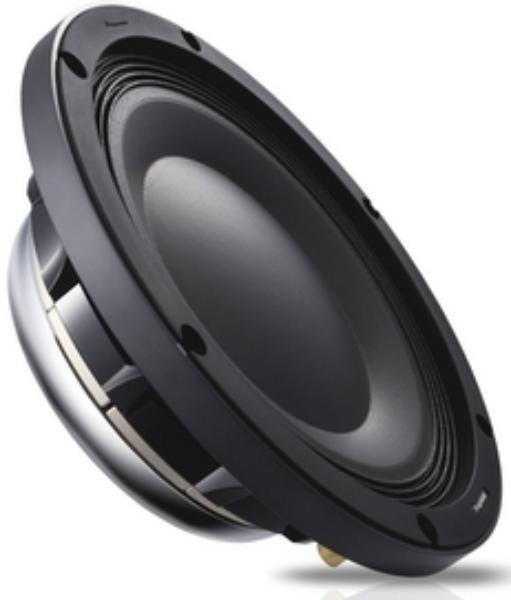

Pioneer TS-W01RS
Pioneer TS-W01RS
Model

Pioneer TS-W01RS

Rating
DIAM
10"
FS(Hz)
24.1
VAS(l)
70.2
QTS
0.3
PWR(W)
300
SPL(dB)
86
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
24.1
Vas(l)
70.2
Qts
0.3
Qms
5.46
Qes
0.36
Bl(Tm)
11.8
Mms(gr)
96
Cms(mm/N)
0.39
Rms(kg/s)
2.27
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
35620
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
276
Cutout Diameter (mm)
238
Mounting Depth (mm)
94
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
