Model

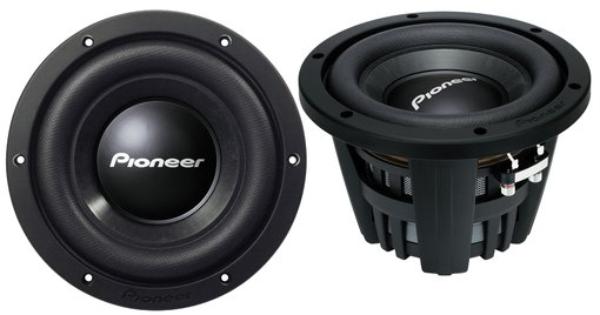

Pioneer TS-W101SPL
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
10"
FS(Hz)
37.3
VAS(l)
17.5
QTS
0.38
PWR(W)
1500
SPL(dB)
85.6
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37.3
Vas(l)
17.5
Qts
0.376
Qms
14.514
Qes
0.386
Bl(Tm)
22.5
Mms(gr)
139
Cms(mm/N)
0.131
Rms(kg/s)
2.13
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
30726
Vd(l)
0.289
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1500
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.6
Sensitivity(dB) 2.8-V
86.8
Mounting Information
Speaker Displacement (l)
1.39
Total Diameter (mm)
282
Cutout Diameter (mm)
238
Mounting Depth (mm)
162
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
