Model

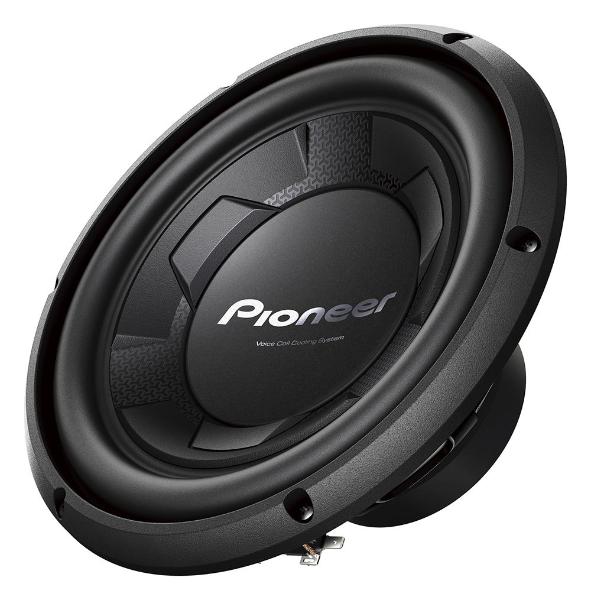

Pioneer TS-W106M
Rating
DIAM
10"
FS(Hz)
32.7
VAS(l)
32.2
QTS
0.66
PWR(W)
1100
SPL(dB)
92
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.7
Vas(l)
32.2
Qts
0.66
Qms
22.4
Qes
0.68
Bl(Tm)
12.1
Mms(gr)
125
Cms(mm/N)
0.19
Rms(kg/s)
1.5
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
34920
Vd(l)
0.22
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1100
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
92
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.7
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
122
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
