Model

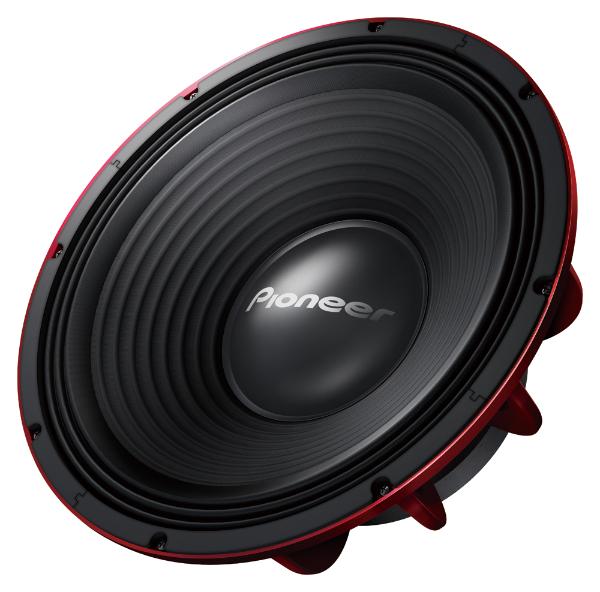

Pioneer TS-W1200PRO
Rating
DIAM
12"
FS(Hz)
40
VAS(l)
24.1
QTS
0.38
PWR(W)
1500
SPL(dB)
105
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
24.1
Qts
0.38
Qms
14.8
Qes
0.39
Bl(Tm)
25
Mms(gr)
142
Cms(mm/N)
0.111
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
54098
Vd(l)
0.33
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
450
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
105
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.5
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
127
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
