Model

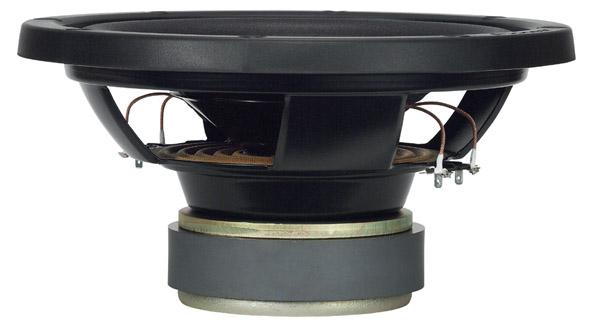

Pioneer TS-W125DVC
Rating
DIAM
12"
FS(Hz)
33.9
VAS(l)
50.8
QTS
0.37
PWR(W)
800
SPL(dB)
89
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.9
Vas(l)
50.8
Qts
0.37
Qms
14.2
Qes
0.38
Bl(Tm)
11
Mms(gr)
130
Cms(mm/N)
0.17
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1.5
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.36
Total Diameter (mm)
0
Cutout Diameter (mm)
278
Mounting Depth (mm)
144
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
