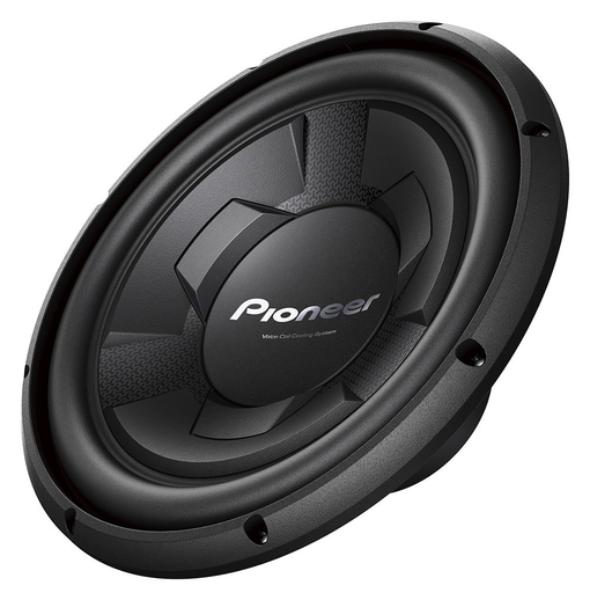

Pioneer TS-W126M
Pioneer TS-W126M
Model

Pioneer TS-W126M

Rating
DIAM
12"
FS(Hz)
24.6
VAS(l)
102.1
QTS
0.81
PWR(W)
1300
SPL(dB)
96
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
24.6
Vas(l)
102.1
Qts
0.81
Qms
15.6
Qes
0.85
Bl(Tm)
10.3
Mms(gr)
154
Cms(mm/N)
0.27
Rms(kg/s)
1.53
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
51282
Vd(l)
0.6
X-max(mm)
12
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1300
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
96
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
1
Total Diameter (mm)
0
Cutout Diameter (mm)
281
Mounting Depth (mm)
135
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
