Model

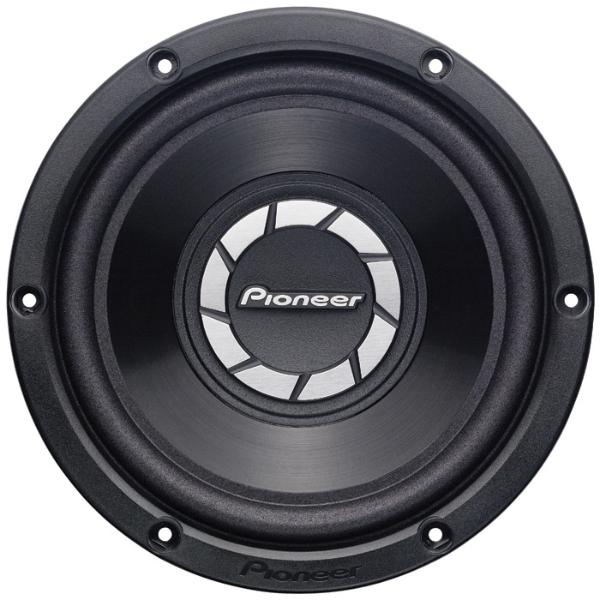

Pioneer TS-W250R
Rating
DIAM
10"
FS(Hz)
31.4
VAS(l)
59.9
QTS
0.55
PWR(W)
500
SPL(dB)
86.8
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
31.4
Vas(l)
59.9
Qts
0.552
Qms
8.5
Qes
0.591
Bl(Tm)
8.7
Mms(gr)
74
Cms(mm/N)
0.346
Rms(kg/s)
1.71
Le(mH)
2.02
Re(Ohm)
3
Sd(sq.mm)
34932
Vd(l)
0.182
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
91.1
Mounting Information
Speaker Displacement (l)
1.12
Total Diameter (mm)
250
Cutout Diameter (mm)
238
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
