Model

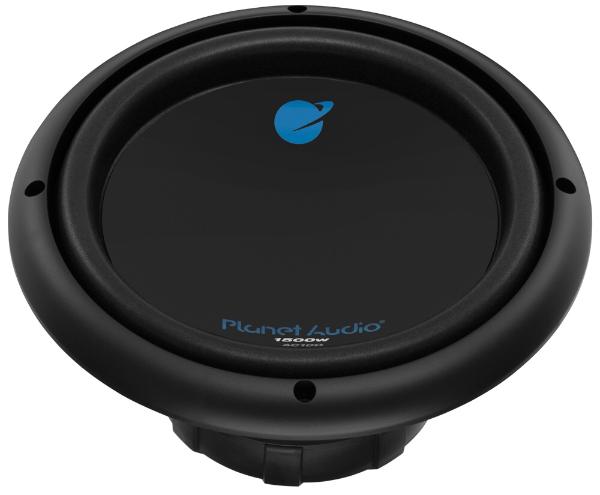

Planet Audio AC10D
Rating
DIAM
10"
FS(Hz)
39
VAS(l)
28
QTS
0.8
PWR(W)
1500
SPL(dB)
84.1
IMP(Ohm)
4x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
28
Qts
0.801
Qms
4.5
Qes
0.976
Bl(Tm)
9.4
Mms(gr)
89
Cms(mm/N)
0.188
Rms(kg/s)
4.86
Le(mH)
3.9
Re(Ohm)
4
Sd(sq.mm)
32413
Vd(l)
0.324
X-max(mm)
10
X-mech(mm)
25
General Parameters
Diameter (inch)
10
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84.1
Sensitivity(dB) 2.8-V
87.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
257
Cutout Diameter (mm)
229
Mounting Depth (mm)
102
Magnet Diameter (mm)
152
Optimum Enclosures
Enclosures
Closed, BP4
