Model

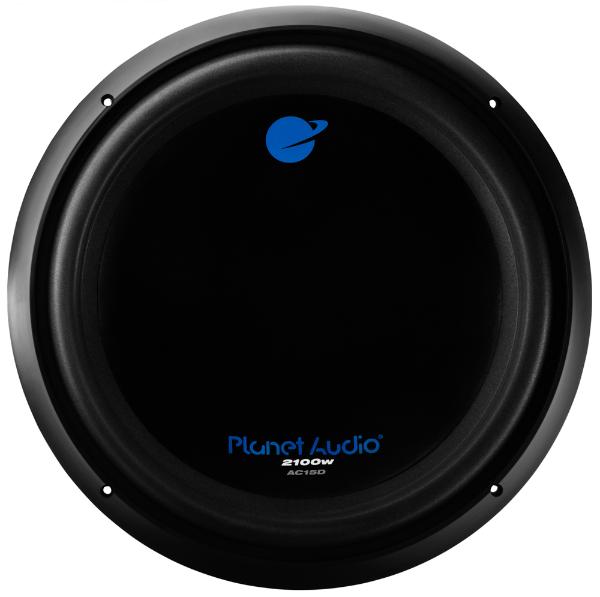

Planet Audio AC15D
Rating
DIAM
15"
FS(Hz)
25
VAS(l)
226
QTS
0.68
PWR(W)
2100
SPL(dB)
89
IMP(Ohm)
4x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
25
Vas(l)
226
Qts
0.675
Qms
6.147
Qes
0.76
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2100
RMS Power(W.)
1050
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
352
Mounting Depth (mm)
178
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
