Model

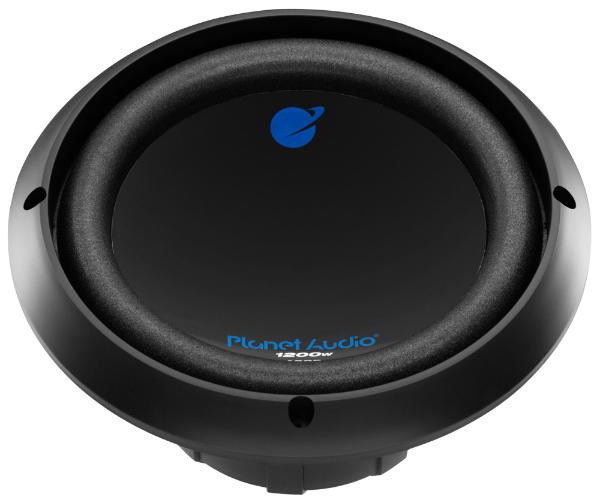

Planet Audio AC8D
Rating
DIAM
8"
FS(Hz)
39
VAS(l)
29.3
QTS
0.63
PWR(W)
1200
SPL(dB)
85
IMP(Ohm)
4x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
29.3
Qts
0.633
Qms
2.399
Qes
0.859
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
187
Mounting Depth (mm)
104
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
