Model

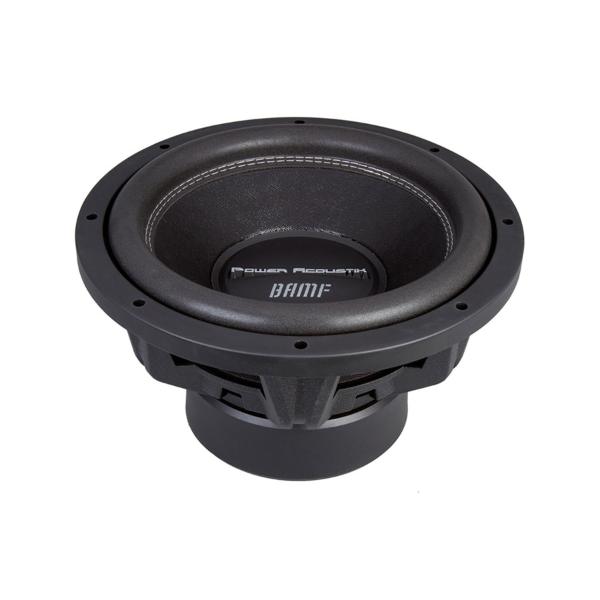

Power Acoustik BAMF-102
Rating
DIAM
10"
FS(Hz)
39.8
VAS(l)
11.6
QTS
0.56
PWR(W)
3200
SPL(dB)
82.4
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39.8
Vas(l)
11.6
Qts
0.56
Qms
4.5
Qes
0.64
Bl(Tm)
16.8
Mms(gr)
236
Cms(mm/N)
0.07
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
14
X-mech(mm)
38
General Parameters
Diameter (inch)
10
Max Power(W.)
3200
RMS Power(W.)
1600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.4
Sensitivity(dB) 2.8-V
85.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
