Model

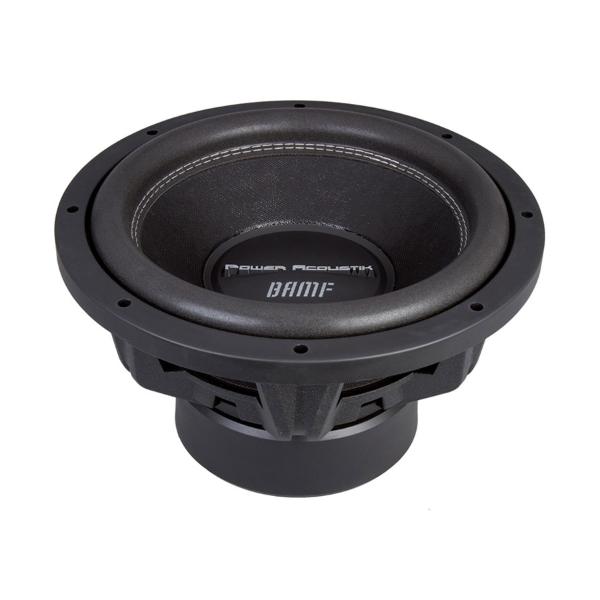

Power Acoustik BAMF-122
Rating
DIAM
12"
FS(Hz)
36.3
VAS(l)
23.5
QTS
0.57
PWR(W)
3500
SPL(dB)
84.2
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36.3
Vas(l)
23.5
Qts
0.57
Qms
3.8
Qes
0.66
Bl(Tm)
26.7
Mms(gr)
286
Cms(mm/N)
0.07
Rms(kg/s)
17.18
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
48653
Vd(l)
0.681
X-max(mm)
14
X-mech(mm)
38
General Parameters
Diameter (inch)
12
Max Power(W.)
3500
RMS Power(W.)
1750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84.2
Sensitivity(dB) 2.8-V
84.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
324
Cutout Diameter (mm)
279
Mounting Depth (mm)
178
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
