Model

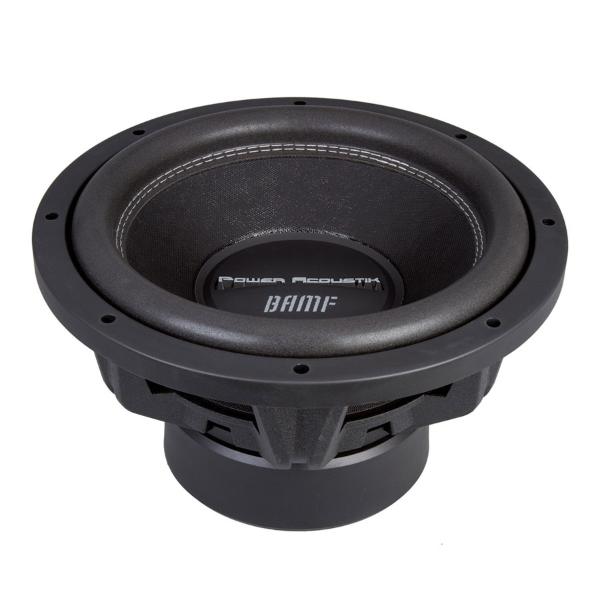

Power Acoustik BAMF-152
Rating
DIAM
15"
FS(Hz)
32.8
VAS(l)
49.8
QTS
0.56
PWR(W)
3800
SPL(dB)
86.1
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.8
Vas(l)
49.8
Qts
0.562
Qms
3.8
Qes
0.66
Bl(Tm)
22.8
Mms(gr)
462
Cms(mm/N)
0.051
Rms(kg/s)
25.08
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
83088
Vd(l)
1.163
X-max(mm)
14
X-mech(mm)
38
General Parameters
Diameter (inch)
15
Max Power(W.)
3800
RMS Power(W.)
1900
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
89.6
Mounting Information
Speaker Displacement (l)
4.53
Total Diameter (mm)
394
Cutout Diameter (mm)
352
Mounting Depth (mm)
203
Magnet Diameter (mm)
178
Optimum Enclosures
Enclosures
Closed, BP4
