Model

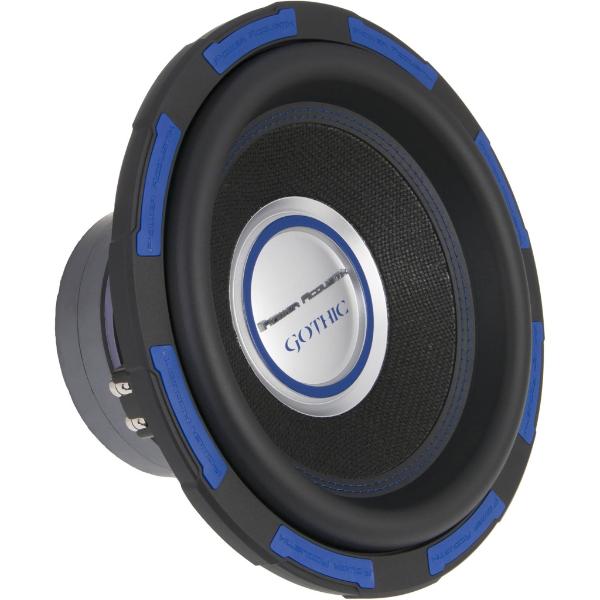

Power Acoustik GW-124
Rating
DIAM
12"
FS(Hz)
32.9
VAS(l)
39.9
QTS
0.58
PWR(W)
2500
SPL(dB)
0
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.9
Vas(l)
39.9
Qts
0.583
Qms
4.427
Qes
0.672
Bl(Tm)
21.2
Mms(gr)
190
Cms(mm/N)
0.123
Rms(kg/s)
8.888
Le(mH)
0
Re(Ohm)
7.6
Sd(sq.mm)
47843
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2500
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
279
Mounting Depth (mm)
159
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
