Model

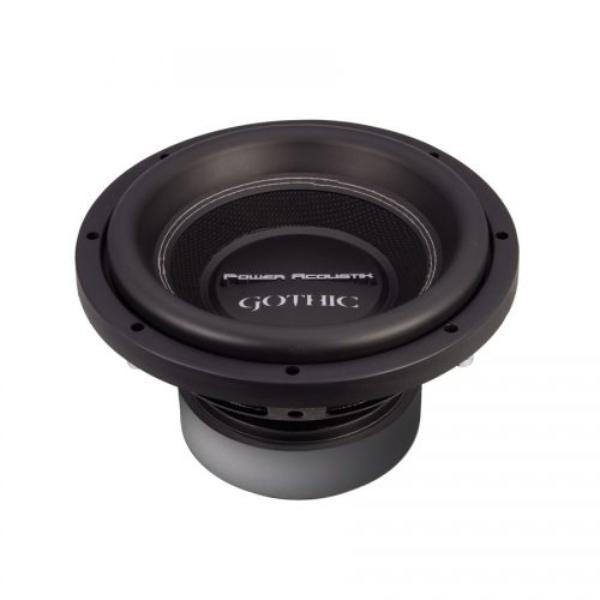

Power Acoustik GW3-10
Rating
DIAM
10"
FS(Hz)
35.3
VAS(l)
30.4
QTS
1.15
PWR(W)
2200
SPL(dB)
81.3
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.3
Vas(l)
30.4
Qts
1.154
Qms
5.409
Qes
1.47
Bl(Tm)
9.1
Mms(gr)
244
Cms(mm/N)
0.083
Rms(kg/s)
10.004
Le(mH)
0
Re(Ohm)
2.2
Sd(sq.mm)
50645
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2200
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
244
Mounting Depth (mm)
163
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
