Model

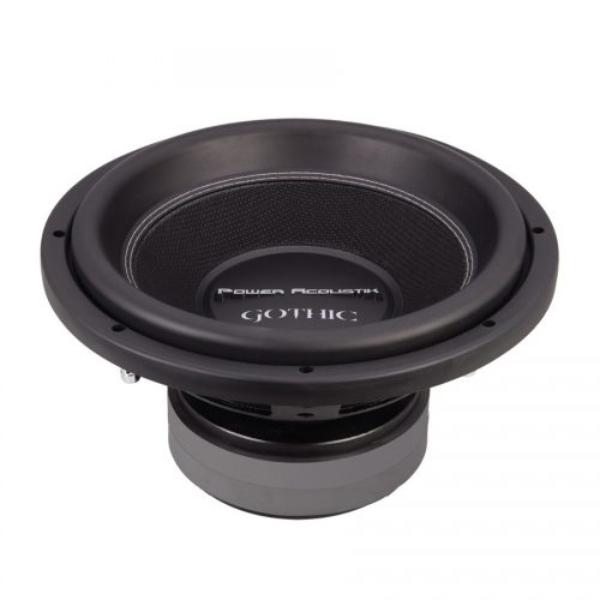

Power Acoustik GW3-12
Rating
DIAM
12"
FS(Hz)
34.3
VAS(l)
60.9
QTS
1.22
PWR(W)
2400
SPL(dB)
83.6
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
34.3
Vas(l)
60.9
Qts
1.215
Qms
5.291
Qes
1.58
Bl(Tm)
8.9
Mms(gr)
268
Cms(mm/N)
0.08
Rms(kg/s)
10.913
Le(mH)
0
Re(Ohm)
2.1
Sd(sq.mm)
73000
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
292
Mounting Depth (mm)
165
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
