Model

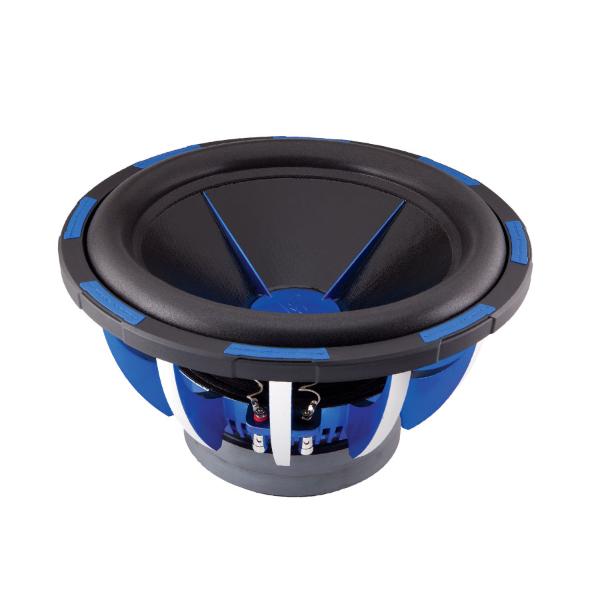

Power Acoustik MOFO-122X
Rating
DIAM
12"
FS(Hz)
28.9
VAS(l)
38.7
QTS
0.4
PWR(W)
2700
SPL(dB)
85.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28.9
Vas(l)
38.7
Qts
0.399
Qms
5.559
Qes
0.43
Bl(Tm)
20.3
Mms(gr)
248
Cms(mm/N)
0.122
Rms(kg/s)
8.111
Le(mH)
0
Re(Ohm)
3.9
Sd(sq.mm)
47293
Vd(l)
0.709
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2700
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
286
Mounting Depth (mm)
175
Magnet Diameter (mm)
200
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
