Model

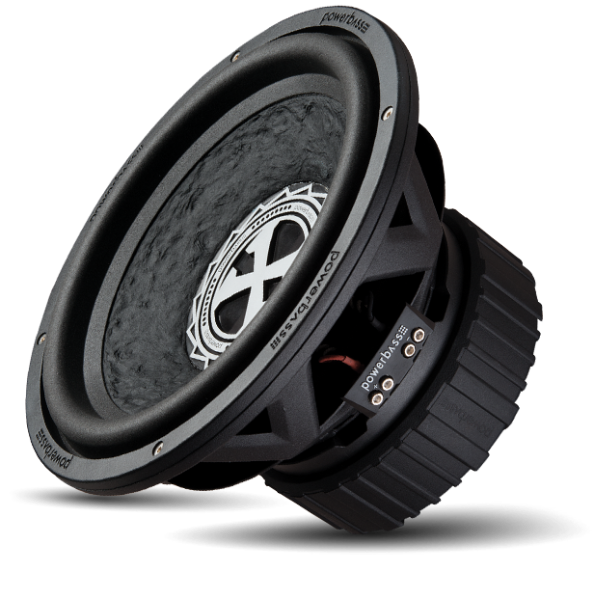

PowerBass 3XL-1201D
Rating
DIAM
12"
FS(Hz)
30.3
VAS(l)
39.3
QTS
0.4
PWR(W)
1700
SPL(dB)
85.7
IMP(Ohm)
1x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30.3
Vas(l)
39.3
Qts
0.4
Qms
3.9
Qes
0.45
Bl(Tm)
17.6
Mms(gr)
281
Cms(mm/N)
0.098
Rms(kg/s)
13.73
Le(mH)
0
Re(Ohm)
2.6
Sd(sq.mm)
53090
Vd(l)
1.274
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1700
RMS Power(W.)
850
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
90.6
Mounting Information
Speaker Displacement (l)
4.25
Total Diameter (mm)
0
Cutout Diameter (mm)
279
Mounting Depth (mm)
189
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
