Model

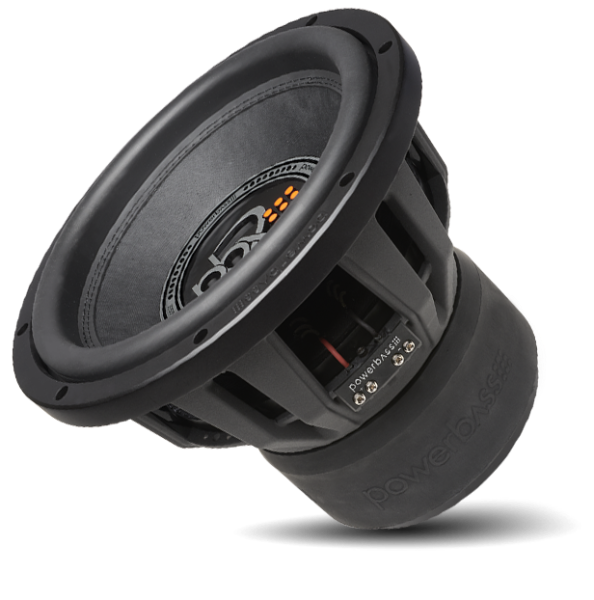

PowerBass 3XL-1210D
Rating
DIAM
12"
FS(Hz)
35.5
VAS(l)
26
QTS
0.58
PWR(W)
2000
SPL(dB)
84.4
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35.5
Vas(l)
26
Qts
0.577
Qms
5.9
Qes
0.639
Bl(Tm)
14.1
Mms(gr)
309
Cms(mm/N)
0.065
Rms(kg/s)
11.67
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
53107
Vd(l)
1.009
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.18
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
90.9
Mounting Information
Speaker Displacement (l)
2.61
Total Diameter (mm)
322
Cutout Diameter (mm)
282
Mounting Depth (mm)
232
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
