Model

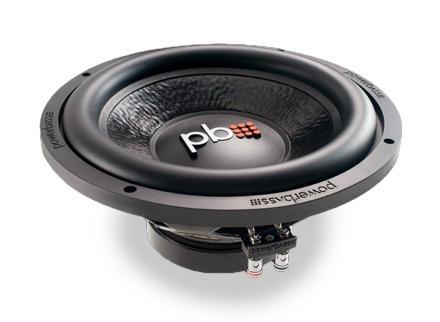

PowerBass M-124
Rating
DIAM
12"
FS(Hz)
29.1
VAS(l)
77.3
QTS
0.41
PWR(W)
700
SPL(dB)
88
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
29.1
Vas(l)
77.3
Qts
0.41
Qms
3.6
Qes
0.463
Bl(Tm)
13.3
Mms(gr)
139
Cms(mm/N)
0.214
Rms(kg/s)
7.072
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
51070
Vd(l)
0.485
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
700
RMS Power(W.)
375
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
