Model

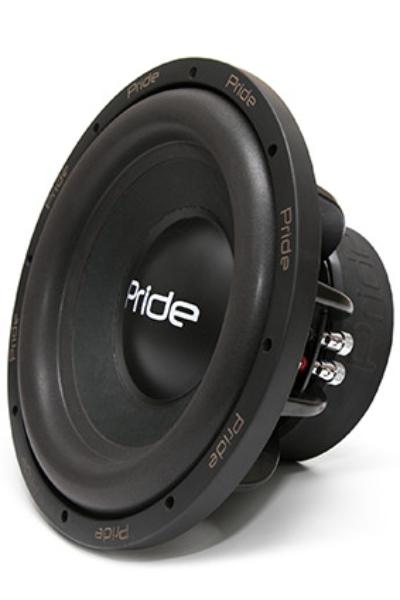

Pride AB-12
Rating
DIAM
12"
FS(Hz)
27
VAS(l)
40
QTS
0.4
PWR(W)
1200
SPL(dB)
0
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27
Vas(l)
40
Qts
0.4
Qms
0
Qes
0
Bl(Tm)
20
Mms(gr)
287
Cms(mm/N)
0.121
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
48300
Vd(l)
0.869
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
