Model

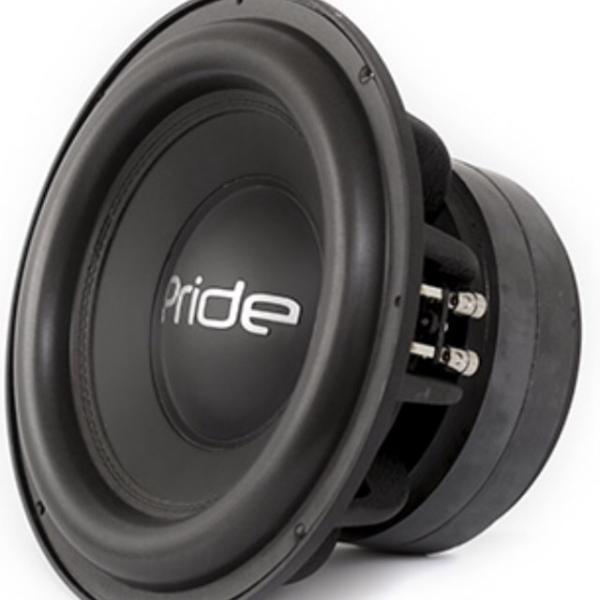

Pride BB.3 12
Rating
DIAM
12"
FS(Hz)
28
VAS(l)
32
QTS
0.28
PWR(W)
2500
SPL(dB)
85.5
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
32
Qts
0.28
Qms
3.844
Qes
0.302
Bl(Tm)
25.6
Mms(gr)
330
Cms(mm/N)
0.098
Rms(kg/s)
15.089
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
48000
Vd(l)
1.1
X-max(mm)
23
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
280
Mounting Depth (mm)
156
Magnet Diameter (mm)
200
Optimum Enclosures
Enclosures
Vented, BP6
