Model

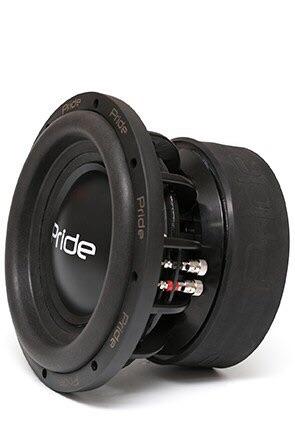

Pride BB V.2 10 D2
Rating
DIAM
10"
FS(Hz)
37
VAS(l)
12
QTS
0.3
PWR(W)
3000
SPL(dB)
85
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
12
Qts
0.3
Qms
0
Qes
0
Bl(Tm)
32
Mms(gr)
298
Cms(mm/N)
0.062
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
37000
Vd(l)
0.962
X-max(mm)
26
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
88
Mounting Information
Speaker Displacement (l)
3.5
Total Diameter (mm)
274
Cutout Diameter (mm)
238
Mounting Depth (mm)
168
Magnet Diameter (mm)
215
Optimum Enclosures
Enclosures
Vented, BP6
