Model

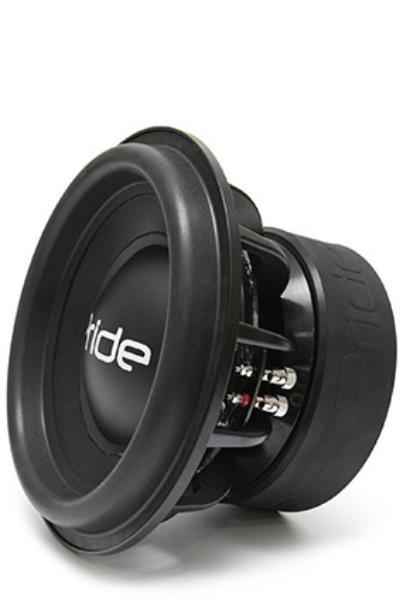

Pride BB V.2 12
Rating
DIAM
12"
FS(Hz)
26
VAS(l)
33
QTS
0.28
PWR(W)
3000
SPL(dB)
88.7
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
33
Qts
0.28
Qms
0
Qes
0
Bl(Tm)
32
Mms(gr)
468
Cms(mm/N)
0.08
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
53900
Vd(l)
1.401
X-max(mm)
26
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.7
Sensitivity(dB) 2.8-V
92
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
313
Cutout Diameter (mm)
280
Mounting Depth (mm)
180
Magnet Diameter (mm)
215
Optimum Enclosures
Enclosures
Vented, BP6
