Model

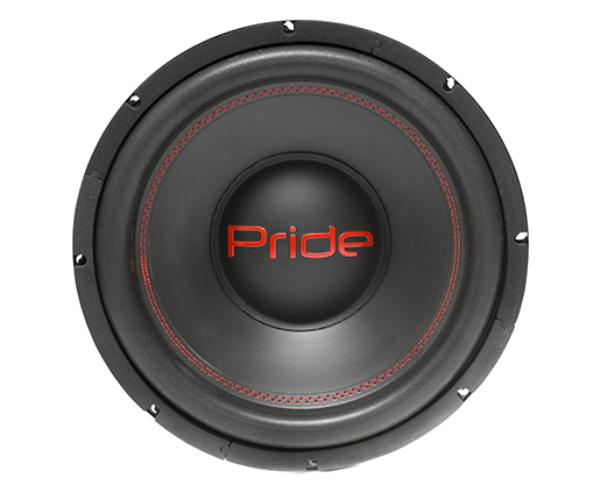

Pride ECO 12
Rating
DIAM
12"
FS(Hz)
33.1
VAS(l)
48.5
QTS
0.75
PWR(W)
600
SPL(dB)
85
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
33.1
Vas(l)
48.5
Qts
0.75
Qms
6.37
Qes
0.85
Bl(Tm)
11.5
Mms(gr)
164
Cms(mm/N)
0.141
Rms(kg/s)
5.348
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
50600
Vd(l)
1.417
X-max(mm)
28
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
136
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
