Model

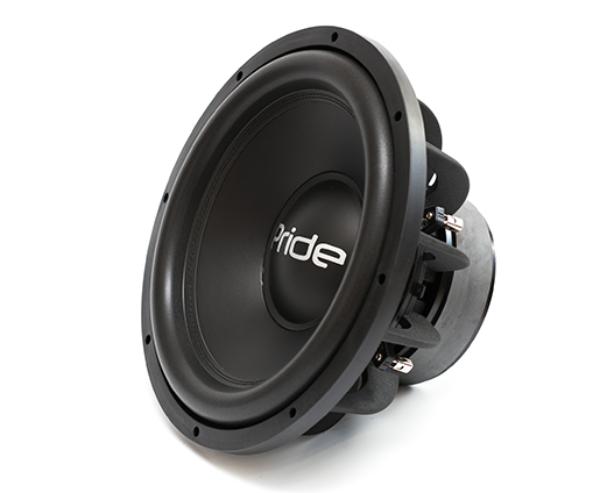

Pride HP 15 D2
Rating
DIAM
15"
FS(Hz)
28
VAS(l)
82
QTS
0.39
PWR(W)
2500
SPL(dB)
87
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
82
Qts
0.39
Qms
1.347
Qes
0.549
Bl(Tm)
18.9
Mms(gr)
347
Cms(mm/N)
0.093
Rms(kg/s)
45.387
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
79000
Vd(l)
1.501
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.32
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
90.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
353
Mounting Depth (mm)
182
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
