Model

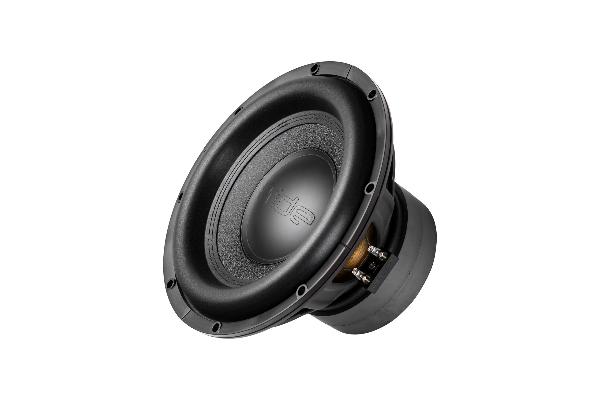

Pride HP Lite 12 D1.8
Rating
DIAM
12"
FS(Hz)
31.8
VAS(l)
27
QTS
0.57
PWR(W)
2400
SPL(dB)
84.8
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
31.8
Vas(l)
27
Qts
0.57
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
283
Cms(mm/N)
0.088
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
46400
Vd(l)
0.928
X-max(mm)
20
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.19
Sensitivity(dB) 1-W
84.8
Sensitivity(dB) 2.8-V
88.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
284
Mounting Depth (mm)
170
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
