Model

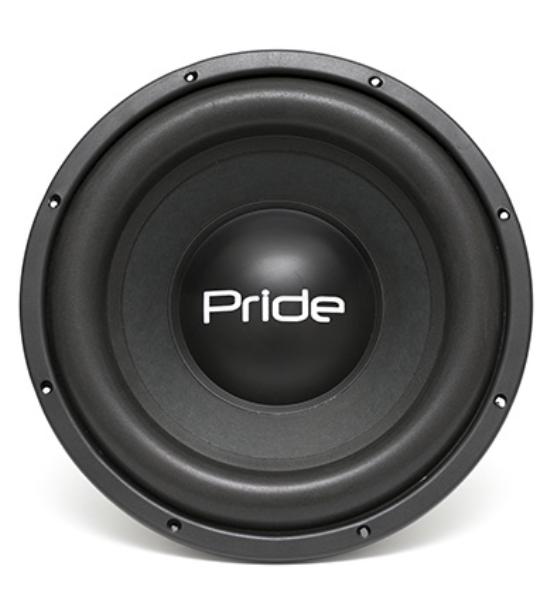

Pride JUNIOR 12
Rating
DIAM
12"
FS(Hz)
30
VAS(l)
51
QTS
0.43
PWR(W)
1300
SPL(dB)
87
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
51
Qts
0.43
Qms
0
Qes
0
Bl(Tm)
17.8
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
47900
Vd(l)
0.86
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1300
RMS Power(W.)
650
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
284
Mounting Depth (mm)
166
Magnet Diameter (mm)
160
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
