Model

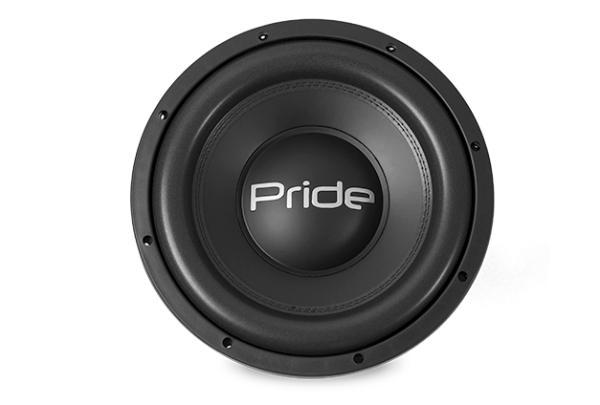

Pride JUNIOR PRO 12
Rating
DIAM
12"
FS(Hz)
28
VAS(l)
56
QTS
0.38
PWR(W)
1600
SPL(dB)
87.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
56
Qts
0.38
Qms
0
Qes
0
Bl(Tm)
18.2
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
48000
Vd(l)
0.888
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.35
Sensitivity(dB) 1-W
87.2
Sensitivity(dB) 2.8-V
90.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
315
Cutout Diameter (mm)
284
Mounting Depth (mm)
162
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
