Model

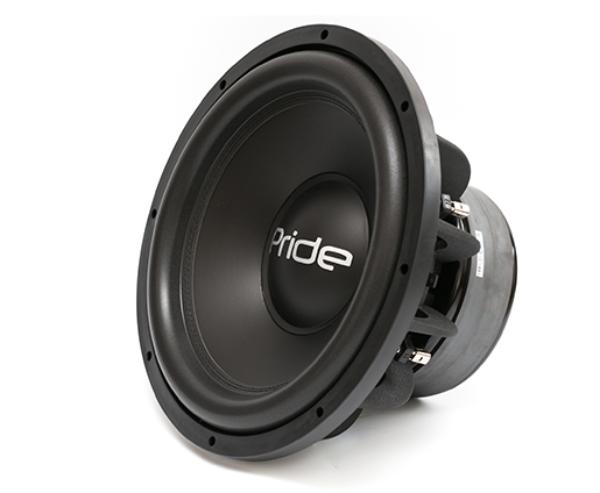

Pride MT 15 D2
Rating
DIAM
15"
FS(Hz)
26
VAS(l)
70
QTS
0.34
PWR(W)
3500
SPL(dB)
90
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
70
Qts
0.34
Qms
0
Qes
0
Bl(Tm)
26
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
79000
Vd(l)
1.896
X-max(mm)
24
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3500
RMS Power(W.)
1750
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.63
Sensitivity(dB) 1-W
90
Sensitivity(dB) 2.8-V
93.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
353
Mounting Depth (mm)
198
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
