Model

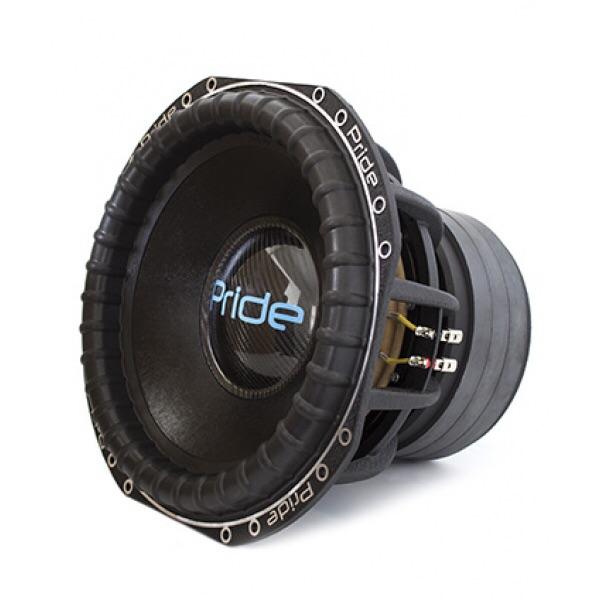

Pride S V.3 15 D1
Rating
DIAM
15"
FS(Hz)
30
VAS(l)
29
QTS
0.27
PWR(W)
8000
SPL(dB)
85.2
IMP(Ohm)
0.8x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
29
Qts
0.27
Qms
0
Qes
0
Bl(Tm)
30
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1.5
Sd(sq.mm)
91000
Vd(l)
3.276
X-max(mm)
36
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
8000
RMS Power(W.)
4000
Number of Coils
2
Impedance Z-Nom(Ohm)
0.8
Reference efficiency η0(%)
0.5
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
92.5
Mounting Information
Speaker Displacement (l)
10
Total Diameter (mm)
394
Cutout Diameter (mm)
364
Mounting Depth (mm)
280
Magnet Diameter (mm)
256
Optimum Enclosures
Enclosures
Vented, BP6
