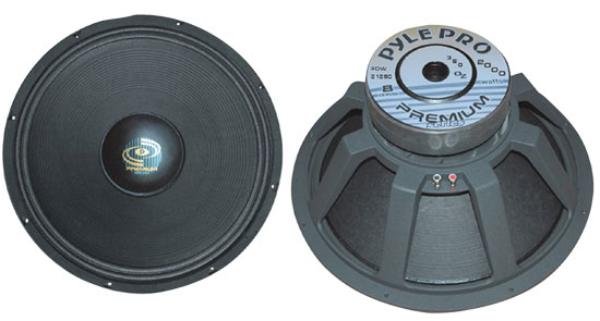

Pyle PDW21250
Pyle PDW21250
Model

Pyle PDW21250

Rating
DIAM
21"
FS(Hz)
22.4
VAS(l)
703.8
QTS
0.33
PWR(W)
2000
SPL(dB)
95
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
22.4
Vas(l)
703.8
Qts
0.33
Qms
2.6
Qes
0.378
Bl(Tm)
26.4
Mms(gr)
297
Cms(mm/N)
0.17
Rms(kg/s)
16.08
Le(mH)
0
Re(Ohm)
6.3
Sd(sq.mm)
170600
Vd(l)
1.535
X-max(mm)
9
X-mech(mm)
0

General Parameters

Diameter (inch)
21
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
95
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
260
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
