Model

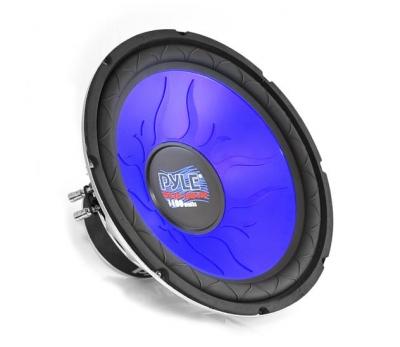

Pyle PL1090BL
Rating
DIAM
10"
FS(Hz)
26.9
VAS(l)
67.8
QTS
0.76
PWR(W)
1000
SPL(dB)
83.5
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26.9
Vas(l)
67.8
Qts
0.76
Qms
5.2
Qes
0.98
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.13
Sensitivity(dB) 1-W
83.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
258
Cutout Diameter (mm)
246
Mounting Depth (mm)
157
Magnet Diameter (mm)
152
Optimum Enclosures
Enclosures
Closed, BP4
