Model

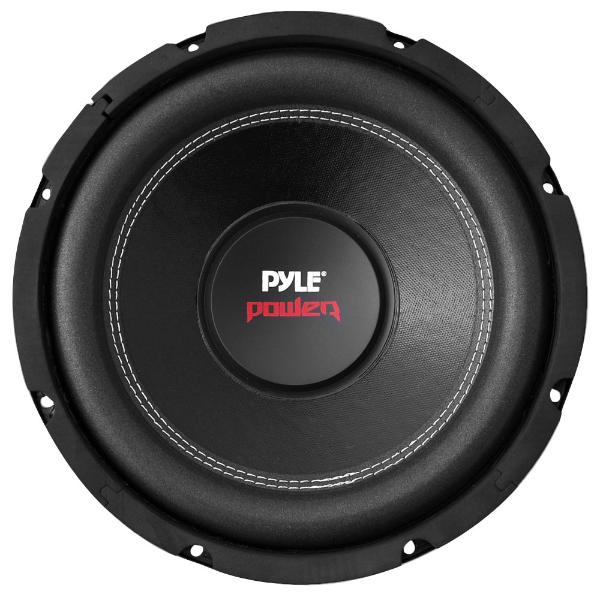

Pyle PLPW10D
Rating
DIAM
10"
FS(Hz)
42.1
VAS(l)
35.6
QTS
0.55
PWR(W)
1000
SPL(dB)
88
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
42.1
Vas(l)
35.6
Qts
0.55
Qms
3.6
Qes
0.648
Bl(Tm)
6.6
Mms(gr)
62
Cms(mm/N)
0.23
Rms(kg/s)
4.56
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
33000
Vd(l)
0.198
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.4
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
94.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
257
Cutout Diameter (mm)
232
Mounting Depth (mm)
115
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
