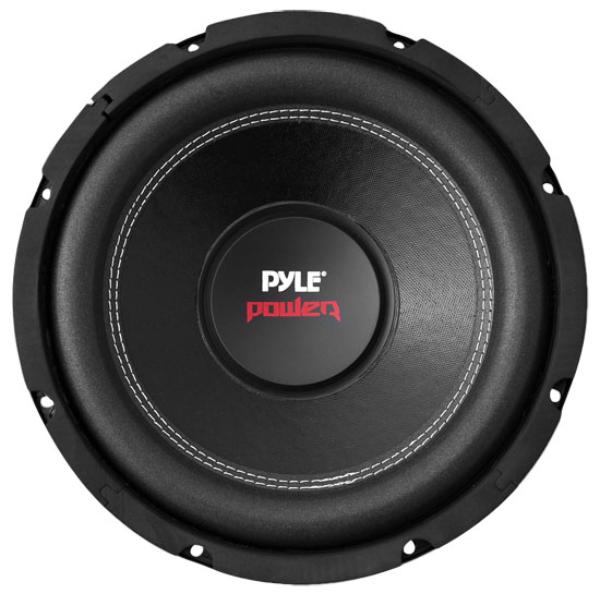

Pyle PLPW15D
Pyle PLPW15D
Model

Pyle PLPW15D

Rating
DIAM
15"
FS(Hz)
29
VAS(l)
195.7
QTS
0.46
PWR(W)
2000
SPL(dB)
91.5
IMP(Ohm)
3.4x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
29
Vas(l)
195.7
Qts
0.459
Qms
3.94
Qes
0.52
Bl(Tm)
9.3
Mms(gr)
147
Cms(mm/N)
0.205
Rms(kg/s)
6.794
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
82000
Vd(l)
0.656
X-max(mm)
8
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
3.4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91.5
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
385
Cutout Diameter (mm)
350
Mounting Depth (mm)
130
Magnet Diameter (mm)
156

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
