Model

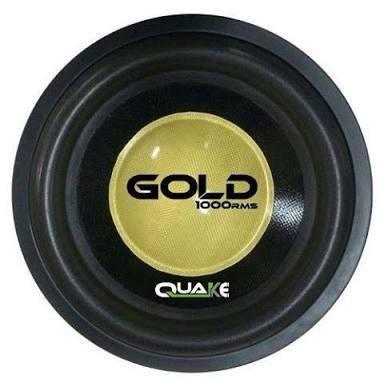

Quake GOLD 12 1K D2
Rating
DIAM
12"
FS(Hz)
46
VAS(l)
28.12
QTS
0.68
PWR(W)
2000
SPL(dB)
87.5
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
46
Vas(l)
28.1
Qts
0.678
Qms
6.988
Qes
0.751
Bl(Tm)
11
Mms(gr)
156
Cms(mm/N)
0.077
Rms(kg/s)
6.435
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
51472
Vd(l)
1.132
X-max(mm)
22
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.35
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
93.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
310
Cutout Diameter (mm)
280
Mounting Depth (mm)
180
Magnet Diameter (mm)
170
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
