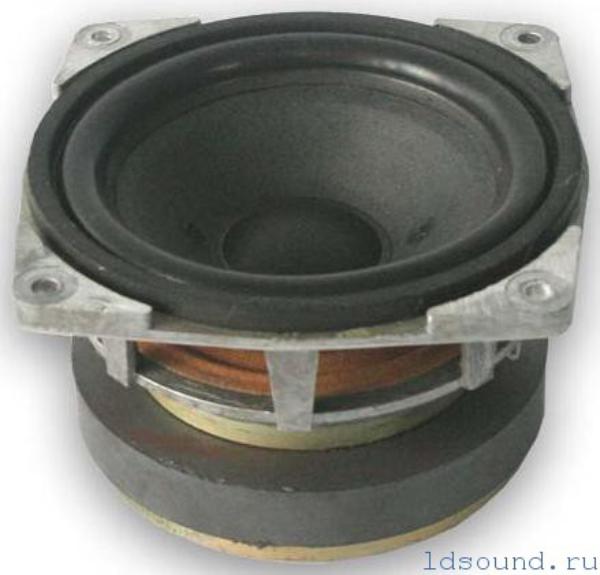

Radiotehnika 25 ГДН-3-4 (15 ГД-14)
Radiotehnika 25 ГДН-3-4 (15 ГД-14)
Model

Radiotehnika 25 ГДН-3-4 (15 ГД-14)

Rating
DIAM
5"
FS(Hz)
55
VAS(l)
8
QTS
0.5
PWR(W)
70
SPL(dB)
85
IMP(Ohm)
4x0
avb
NOPROD

Thiele-Small Parameters

Fs(Hz)
55
Vas(l)
8
Qts
0.5
Qms
0
Qes
0
Bl(Tm)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Mms(gr)
0
Vd(l)
0
Sd(sq.mm)
0
X-max(mm)
0
X-mech(mm)
0
Re(Ohm)
0

General Parameters

Diameter (inch)
5
Max Power(W.)
70
RMS Power(W.)
30
Number of Coils
0
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
125
Cutout Diameter (mm)
0
Mounting Depth (mm)
76
Magnet Diameter (mm)
110

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
