Model

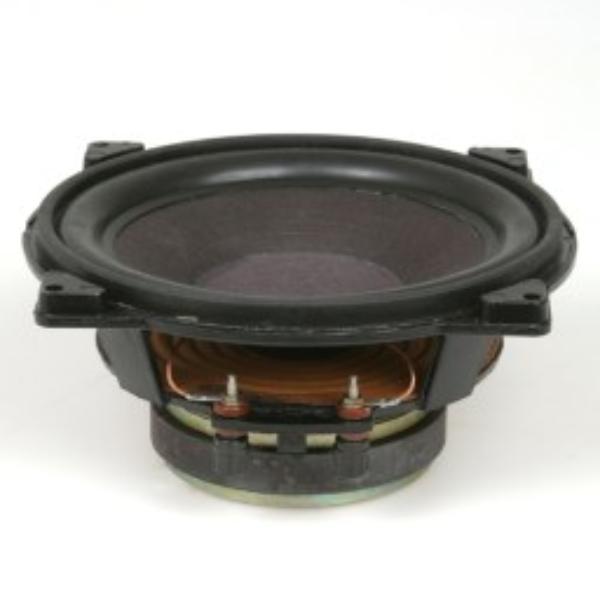

Radiotehnika 35ГДН
Rating
DIAM
8"
FS(Hz)
32
VAS(l)
50
QTS
0.51
PWR(W)
125
SPL(dB)
84
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
50
Qts
0.506
Qms
5.24
Qes
0.56
Bl(Tm)
5.8
Mms(gr)
24
Cms(mm/N)
1.053
Rms(kg/s)
0.9
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
18298
Vd(l)
0.11
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
125
RMS Power(W.)
35
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
240
Cutout Diameter (mm)
185
Mounting Depth (mm)
97
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
