Model

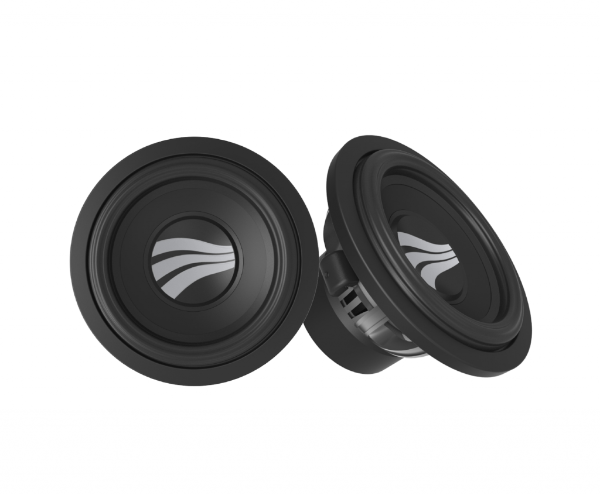

Rainbow GL-S10 D2
Rating
DIAM
10"
FS(Hz)
27
VAS(l)
28
QTS
0.42
PWR(W)
1100
SPL(dB)
82.4
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27
Vas(l)
28
Qts
0.42
Qms
3.2
Qes
0.483
Bl(Tm)
16.2
Mms(gr)
188
Cms(mm/N)
0.185
Rms(kg/s)
9.96
Le(mH)
1.44
Re(Ohm)
4
Sd(sq.mm)
31400
Vd(l)
1.099
X-max(mm)
35
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1100
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.4
Sensitivity(dB) 2.8-V
85.4
Mounting Information
Speaker Displacement (l)
2.6
Total Diameter (mm)
266
Cutout Diameter (mm)
226
Mounting Depth (mm)
152
Magnet Diameter (mm)
176
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
