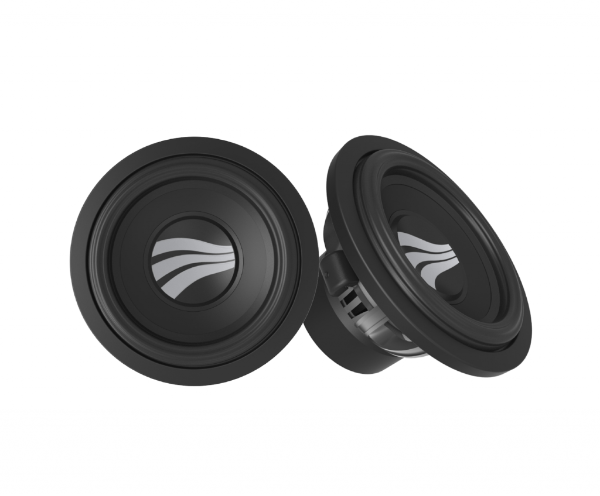

Rainbow GL-S10 D4
Rainbow GL-S10 D4
Model

Rainbow GL-S10 D4

Rating
DIAM
10"
FS(Hz)
26
VAS(l)
28
QTS
0.38
PWR(W)
1100
SPL(dB)
82.4
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
26
Vas(l)
28
Qts
0.38
Qms
3
Qes
0.435
Bl(Tm)
23.7
Mms(gr)
187
Cms(mm/N)
0.2
Rms(kg/s)
2.3
Le(mH)
1.87
Re(Ohm)
8
Sd(sq.mm)
31400
Vd(l)
1.099
X-max(mm)
35
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
1100
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.4
Sensitivity(dB) 2.8-V
82.4

Mounting Information

Speaker Displacement (l)
2.6
Total Diameter (mm)
266
Cutout Diameter (mm)
226
Mounting Depth (mm)
152
Magnet Diameter (mm)
176

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6P

Speaker response
