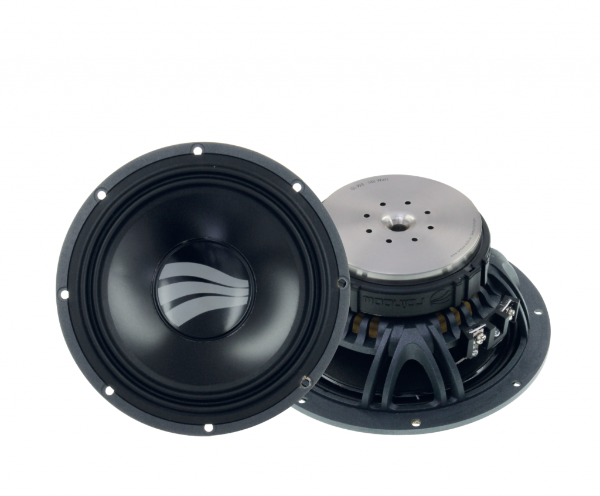

Rainbow GL-W6
Rainbow GL-W6
Model

Rainbow GL-W6

Rating
DIAM
6"
FS(Hz)
43.8
VAS(l)
17.7
QTS
0.46
PWR(W)
180
SPL(dB)
86.3
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
43.8
Vas(l)
17.7
Qts
0.46
Qms
3.54
Qes
0.529
Bl(Tm)
5.7
Mms(gr)
17
Cms(mm/N)
0.763
Rms(kg/s)
1.34
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
12789
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
6
Max Power(W.)
180
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
166
Total Diameter (mm)
0
Cutout Diameter (mm)
143
Mounting Depth (mm)
66
Magnet Diameter (mm)
92

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6P

Speaker response
