Model

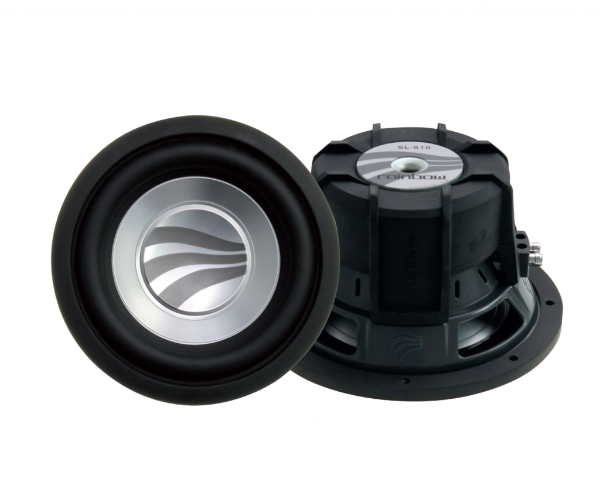

Rainbow SL-S10
Rating
DIAM
10"
FS(Hz)
28
VAS(l)
33
QTS
0.38
PWR(W)
550
SPL(dB)
84.1
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
33
Qts
0.38
Qms
3.1
Qes
0.43
Bl(Tm)
15.7
Mms(gr)
151
Cms(mm/N)
0.214
Rms(kg/s)
7.3
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
33000
Vd(l)
0.99
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
550
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
145
Magnet Diameter (mm)
169
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
