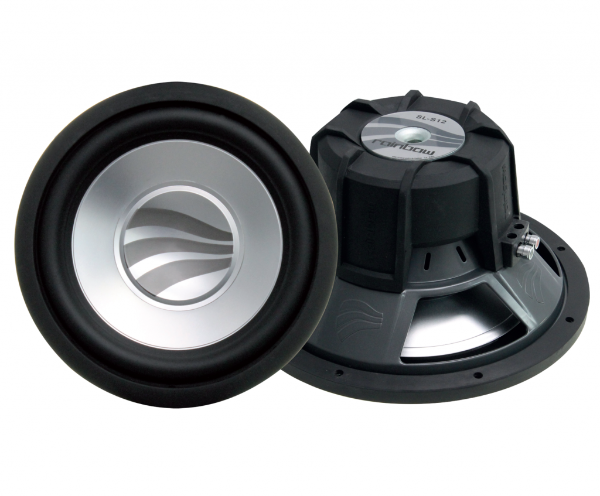

Rainbow SL-S12
Rainbow SL-S12
Model

Rainbow SL-S12

Rating
DIAM
12"
FS(Hz)
25
VAS(l)
75
QTS
0.35
PWR(W)
750
SPL(dB)
86.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
25
Vas(l)
75
Qts
0.35
Qms
2.55
Qes
0.43
Bl(Tm)
16.9
Mms(gr)
206
Cms(mm/N)
0.197
Rms(kg/s)
11.8
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
51800
Vd(l)
1.554
X-max(mm)
30
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
750
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
4
Total Diameter (mm)
0
Cutout Diameter (mm)
280
Mounting Depth (mm)
161
Magnet Diameter (mm)
165

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6P

Speaker response
