Model

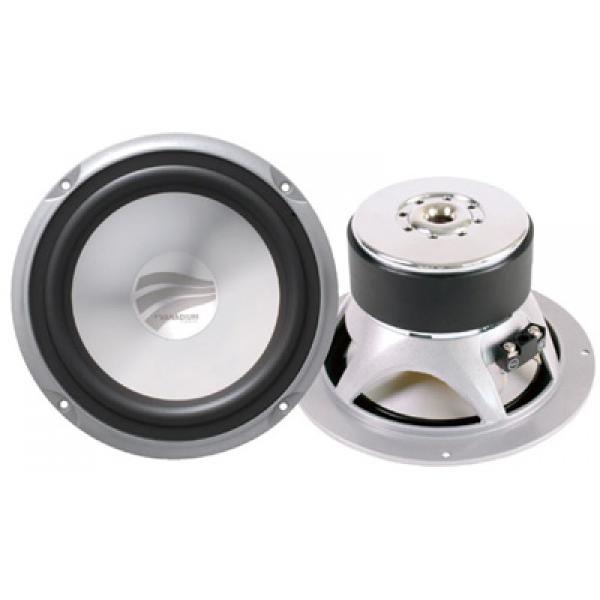

Rainbow VANADIUM 10
Rating
DIAM
10"
FS(Hz)
30
VAS(l)
32
QTS
0.39
PWR(W)
450
SPL(dB)
85
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
32
Qts
0.39
Qms
5.01
Qes
0.42
Bl(Tm)
16.6
Mms(gr)
193
Cms(mm/N)
0.146
Rms(kg/s)
5.8
Le(mH)
5.04
Re(Ohm)
3.2
Sd(sq.mm)
34700
Vd(l)
1.11
X-max(mm)
32
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
450
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
89
Mounting Information
Speaker Displacement (l)
2
Total Diameter (mm)
279
Cutout Diameter (mm)
231
Mounting Depth (mm)
133
Magnet Diameter (mm)
158
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
