Model

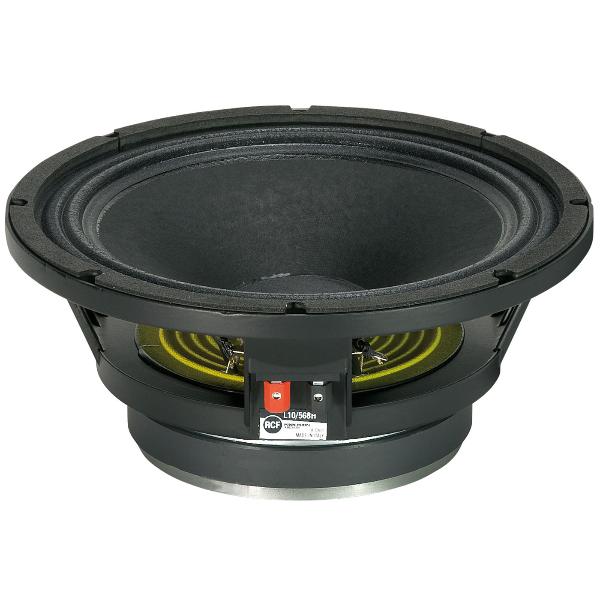

RCF L10/568H
Rating
DIAM
10"
FS(Hz)
70.1
VAS(l)
28.8
QTS
0.4
PWR(W)
200
SPL(dB)
95.6
IMP(Ohm)
8x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
70.1
Vas(l)
28.8
Qts
0.4
Qms
6
Qes
0.42
Bl(Tm)
12.6
Mms(gr)
30
Cms(mm/N)
0.17
Rms(kg/s)
2.202
Le(mH)
0
Re(Ohm)
5
Sd(sq.mm)
34600
Vd(l)
0.104
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
200
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
95.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
